Printing

MockupUI allows you to print designs and annotations as full UI specification documents or as slides containing design screenshots only.

Select File > Print or click the Print tool button.

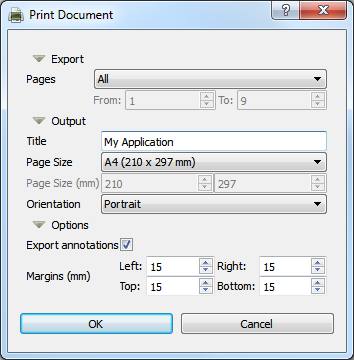

Print dialog

A dialog box will open allowing you to select the printer, the page range you want to print, a scaling method, orientation and page margins. Click Ok to open the Print preview window.

Pages

Selects the designs to print.

• All: All designs in the project.

• Current: Exports only the currently selected design.

• Range: Specifies a range of designs to be exported.

Document Title

Specifies the title that will appear in the header of the pages.

Page Size

Specifies the page dimensions by choosing from a list of common formats or enter a custom size in millimeters.

Orientation

Selects the page orientation (portrait or landscape).

Export annotations

Specifies if the annotations should be printed. If not ticked, only images will be printed.

Margins

Sets the page margins in millimeters.

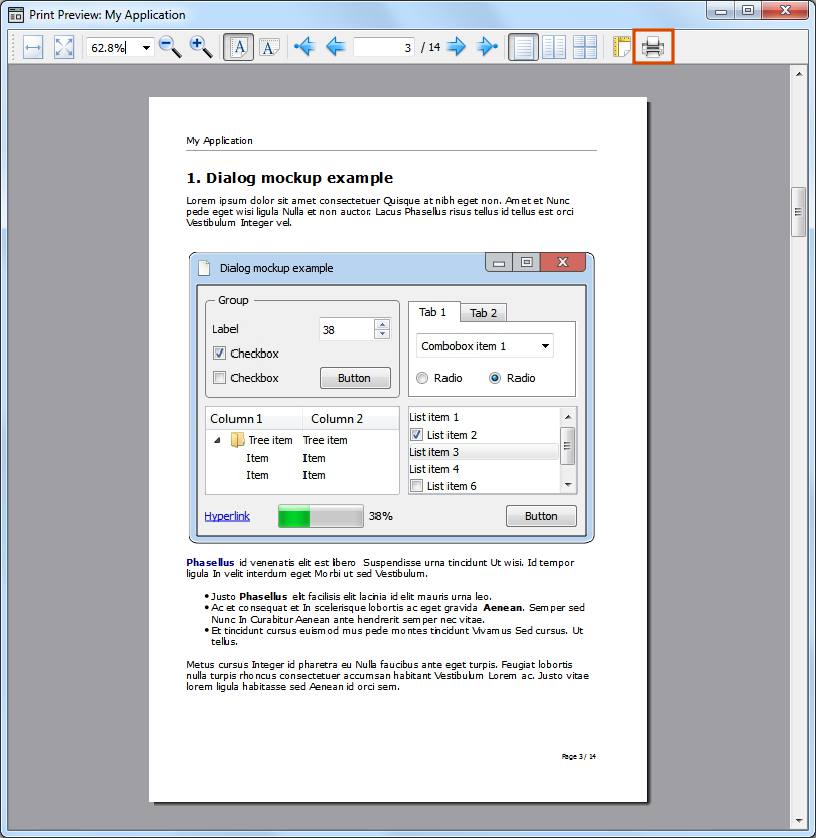

Print preview

The print preview window is where you can see how the content will be printed and to send the document to the printer.

Use the toolbar at the top of the window to:

• Zoom the preview area to a full page size or page width.

• Zoom the preview area to a desired scale.

• Navigate through the pages.

• Show one page, facing pages or an overview of all pages.

• Set up page properties (page size, paper source and orientation).

• Click the Print button to send the document to the printer.
